36V 48V 60V WD05D eBike LED light kits Headlight Rear Light Brake Light Turning Light Horn

Complete WD05 Light Kits
36V 48V 60V WD05D eBike LED light kits;
With Headlight/Rear Light/Brake Light/Turning Light/Horn
  • DC Converter:
    Without Converter
    With 52-90V to 48V 1A DC Converter
(199 available)
Shipping Cost:
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews

Electric Bicycle 24~60V Universal LED Light Kits include Headlight Tail Lights LED Horn and Bake Light

Package Including:

1. Ebike Head Light (with built-in horn): 1pc

2. Ebike Tail Light (include brake light, turning light): 1pc

3. Switch(Light, turning and Horn): 1pc

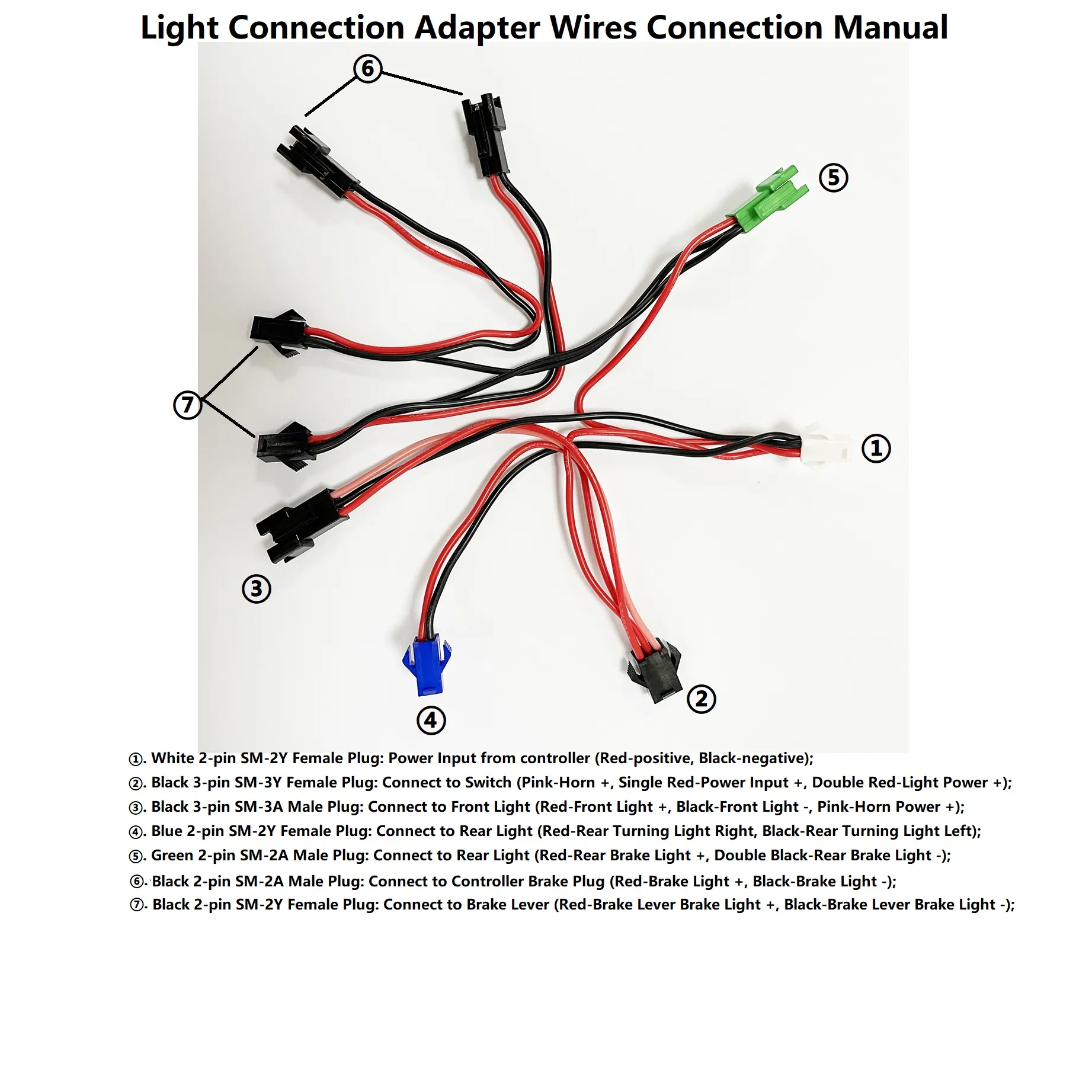

4. Connection wires: 1pc


1. Suitable Products: Suitable for any ebike system with SM plug (Less than 60V)

2. Function: Front Light, Rear Light, Horn, Turning Light, Braking Light

3. Parts Including: Front Light (with built-in horn), Rear Light(support driving light, turning light, braking light), Switch, Adapter connection cable


Front Light Parameters:

1. Model: D021 Front Light

2. Function: Front driving light, built-in horn

3. Bulb Type: LED Light (4pcs LED)

4. Volttage: 24-80V

5. Power: 3W

6. Brightness: 300LM

7. Horn Volume: 80-110dB

8. Cable Length: 140cm

9. Size: 50x62x73mm


Rear Light Parameters:

1. Model: D05D Rear Light

2. Function: Rear driving light, Turning light, Braking light

3. Bulb Type: LED Light

4. Volttage: 24-60V

5. Power: 1.6W

6. Brightness: 30LM

7. Cable Length: 150cm

8. Size: 147x44x42mm


Switch Parameters:

1. Model: DK15

2. Function: Switch of Driving Light/Turning Light/Horn

3. Suitable Handlebar Diameter: 22mm

4. Cable Length: 150cm

5. Size: 53x51.8x26mm

1. My controller has no light power plug, what should I do?
Answer: You can also connect to your controller power input plug to give power to light.
2. Why after connect, my brake light always on?
Answer: Your brake cable is reversed, please just switch two cable of your brake lever plug
3. My controller is higher than 60V, can I connect?
Answer: Please use DC-DC converter to reduce any voltage within 20-60V. You can buy our DC converter.
